CATIA vs 3DEXPERIENCE CATIA: Interface Comparison and Benefits of Upgrading

CATIA is one of the leading 3D design software widely used in industries such as automotive, aerospace, and manufacturing. The release of 3DEXPERIENCE CATIA brings significant changes compared to the V5 version. This article provides a detailed comparison of the interfaces of these two versions to help users better understand the differences and advantages of upgrading from CATIA V5 to 3DEXPERIENCE CATIA.

1. Colors and Layout

CATIA V5: Uses traditional gray tones with a layout focused on stability and robustness. This sometimes makes the interface feel rigid and less intuitive for new users.

3DEXPERIENCE CATIA: Uses brighter colors, mainly white and blue. The layout is clean, with wide spacing between icons, giving a comfortable and professional feel. The interface is designed to be more user-friendly, especially for those transitioning from V5.

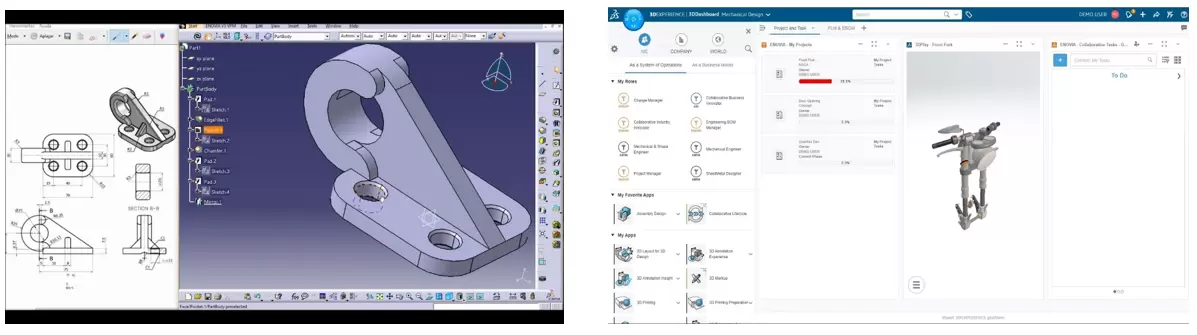

                             CATIA V5                                                                                     3DEXPERIENCE CATIA

2. Interface Style

CATIA V5: Features a traditional interface with fixed toolbars located in familiar positions, including vertical left-side and horizontal top toolbars. Icons are small and grouped by modules (Part Design, Assembly Design, Drafting, etc.). Users can customize toolbars as needed.

3DEXPERIENCE CATIA: Offers a modern and intuitive interface. Icons are larger and more colorful. Instead of focusing on modules like V5, it organizes the interface by roles (role-based), allowing users to access necessary tools based on their tasks. The layout feels clean and organized.

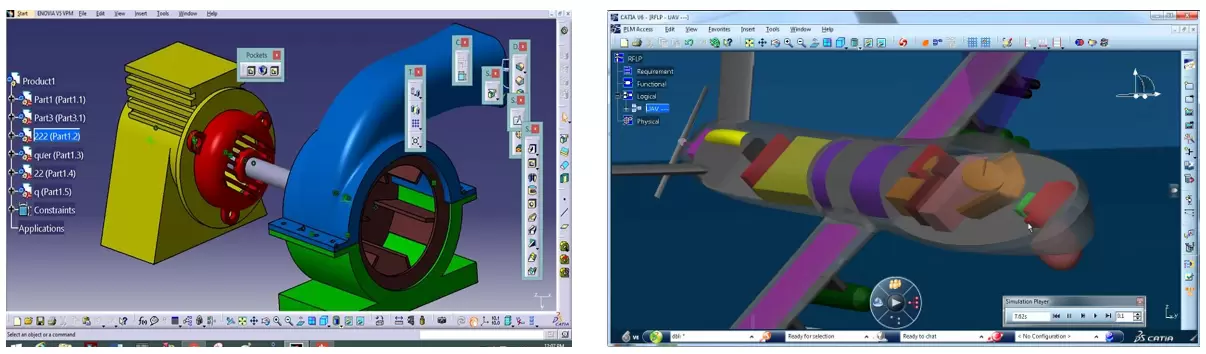

                                  CATIA V5                                                                                 3DEXPERIENCE CATIA

3. Tool Organization and Workspace

CATIA V5: Tools are divided into separate work environments like Part Design, Assembly Design, and Drafting. Each environment has its own set of tools, requiring users to switch between environments for different tasks.

3DEXPERIENCE CATIA: Uses the concept of roles and apps instead of modules. The interface automatically displays the required tools based on the selected role (e.g., product design, simulation analysis, data management). This reduces complexity, especially when working on large projects or in collaborative teams.

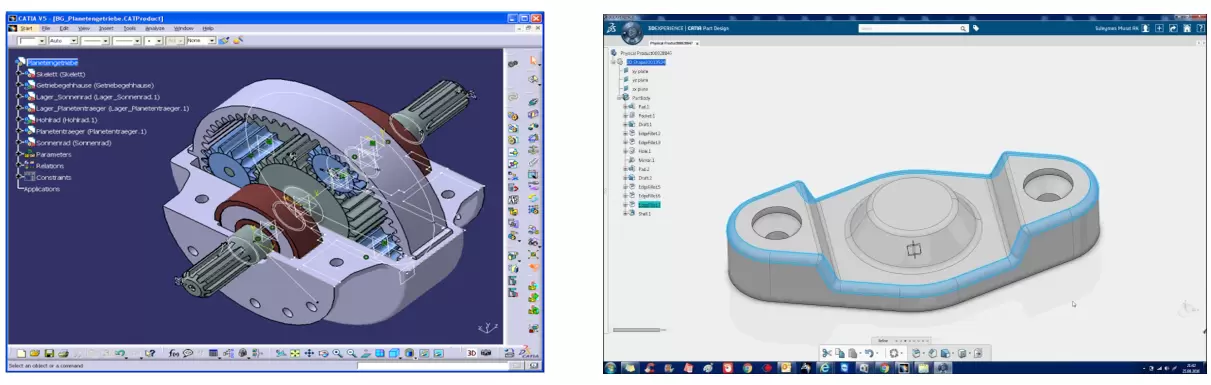

                                   CATIA V5                                                                                   3DEXPERIENCE CATIA

4. Menus and Command Bars

CATIA V5: Menus are mainly traditional drop-downs (File, Edit, View, Insert, Tools, etc.). While familiar, it can be challenging to locate tools during complex design tasks.

3DEXPERIENCE CATIA: Adopts a tabbed interface similar to modern software. Tabs are organized by role groups like design, simulation, and manufacturing, minimizing the need to switch between workspaces. Large icons make tool access faster and more intuitive.

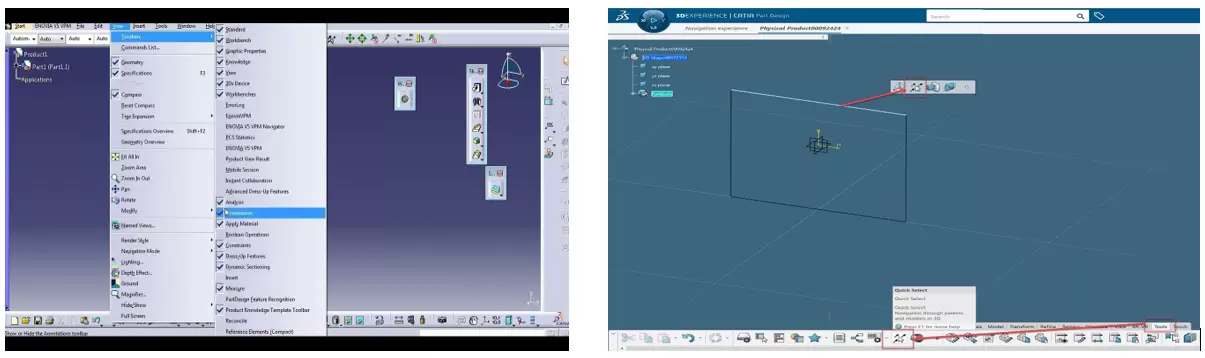

                                    CATIA V5                                                                                   3DEXPERIENCE CATIA

5. Interface Customization

CATIA V5: Users can extensively customize the interface, from adding or removing toolbars to rearranging icons. This is especially useful for experienced engineers familiar with the old interface.

3DEXPERIENCE CATIA: Although modern and intuitive, customization is more limited. The interface is fixed by role, and changing icon arrangements is less flexible than in V5, which may be a drawback for long-time users who prefer personal workspace setups.

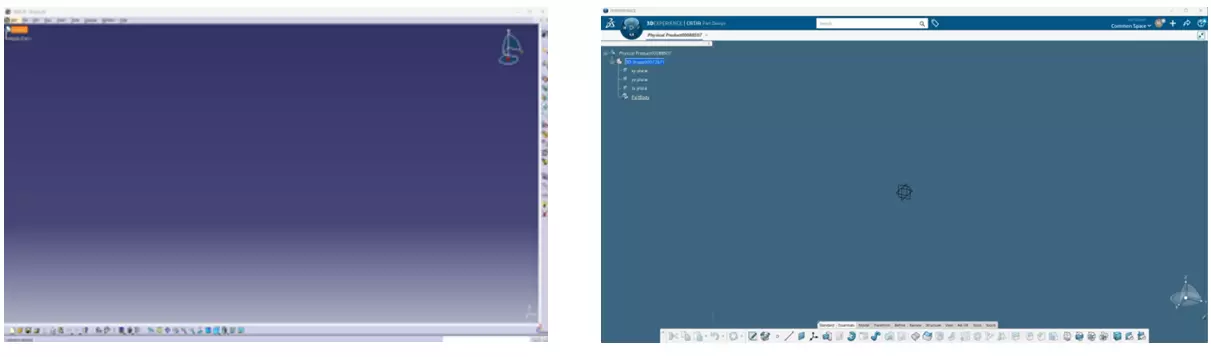

                                     CATIA V5                                                                           3DEXPERIENCE CATIA

6. Quick Access and Operations

CATIA V5: Users rely on toolbars or menu command searches. Keyboard shortcuts are commonly used to speed up workflows.

3DEXPERIENCE CATIA: Enhances quick access through large, descriptive icons, making functions easy to recognize. The smart search bar allows users to find commands or tools without memorizing their exact location.

7. Overall Assessment

CATIA V5: Suitable for experienced users familiar with the traditional interface. It offers high flexibility and customization to meet diverse engineering design needs.

3DEXPERIENCE CATIA: Prioritizes modernity, intuitiveness, and ease of use for new users. With its role-based interface, the system optimizes workflow and team collaboration, especially when integrated with the ENOVIA data management platform.
